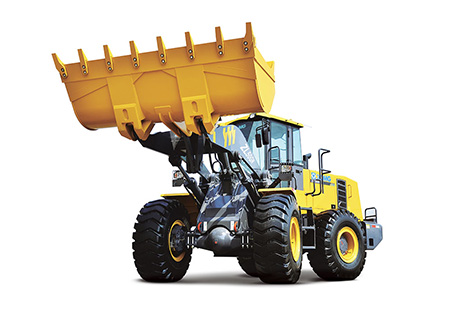

ZL50GN
XCMG
This is the most heavy duty 5 ton wheel loader of XCMG.
Before its model is ZL50GN and it is widely known as XCMG’s most popular 5 ton wheel loader model.
Main specifications:
Description | Specifications | Unit |
Rated Load | 5 | t |
Bucket Capacity | 3 | m3 |
Bucket Width | 3016 | mm |
Dumping clearance (Standard/Optional) | 3090 | mm |
Dumping reach | 1130 | mm |
Breakout force | 170 | kN |
Drawing force | 165 | kN |
Min. turning radius | 6400 | mm |
Raising Time | 6 | s |
Total cycling time | 11 | s |
Wheel base | 3300 | mm |
Traveling speed | ||
1st Gear (F/F) | 0-11.5/0-38 | km/h |
2nd Gear (F) | 0-16.5 | km/h |
Engine | WEICHAI | |
Model | WD10G220E23 | |
Rated power | 162/2000 | kW/rpm |
Overall dimensions (L*W*H) | 8165*3016*3485 | mm |
Operating weight | 17.5 | t |
ZL50GN is with Euro 2 standard engine, the model with Euro3 standard engine is ZL50GV. Please contact us if you want to know more about XCMG 5t wheel loader model ZL50GN.
